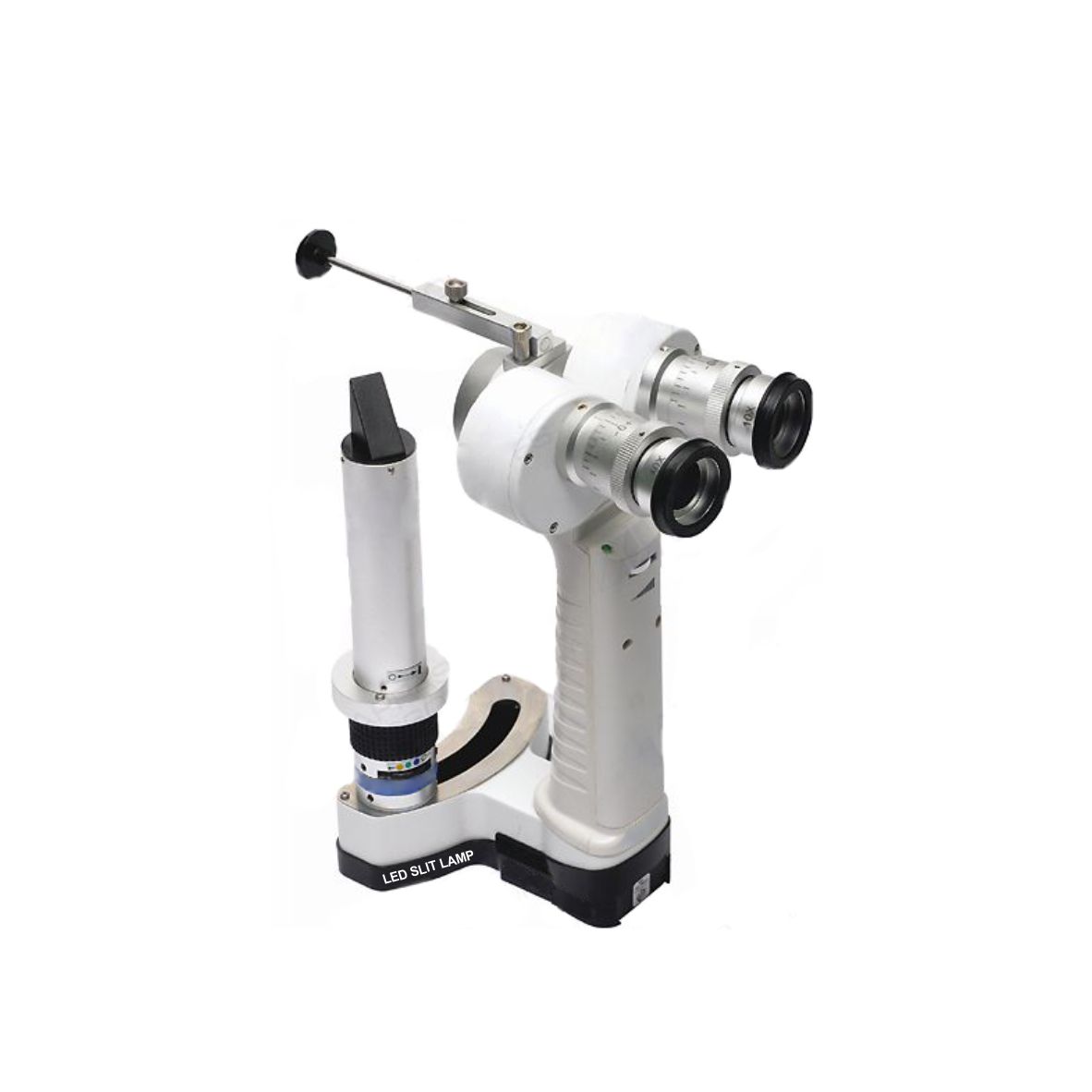

OE-13 HAND HELD SLIT LAMP

OE-13 HAND HELD SLIT LAMP

Description

Slit Lamp of the handheld type that adopts high luminance white LED for the first source of light in the world. It is unnecessary of the trouble some lamp exchange and the life of the light becomes long.

Features
High Illuminance White LED

The luminance of about 10,000 lux was secured by adoption of the high luminance white LED for the source of light, and the life of the light become long. The life of the LED is 50,000 hours or more

Sharp Slit Light

Though it is LED Slit Lamp, a sharp Slit Light can be offered, and slit width can also be adjusted freely.

Small and Light Weight

Since it is small and light weight, it can be used easily in the case of a medical care service at home. You can use for the medical care of the eye of small animal etc.

Filter Function (Illumination Systems)

Selectable of the various filters such as the Cobalt Blue, Green and Conversion Filters for colour temperature.

SPECIFICATION

MICROSCOPE
Eyepiece                                                       X10, X15 (optional)
Total Magnification                                 X10, X15 (optional)
Diopter adjustment                                7D
Visual Field                                                 ø 10mm
PD Adjustment Range                         50-70 mm(At Eyepiece X10)
55-70 mm(At Eyepiece X15)
Working Distance                                  0mm
ILLUMINATION
Slit width                                                    0-11mm (Stepless adjustment is possible).
Slit length                                                  11mm
Filters                                                          Cobalt Blue, Green, Color Temperature                                                                                    Conversion Filter
Illumination Angle  On the level circumference                 30 Degrees
LIGHT SOURCE
Light Source                                           High illuminance White LED
BATTERY
Voltage                                                      Li-ion battery 7.4V 68Ah
Operating time                                     About 2 Hours (in full charged state with                                                                                   maximum illumination)
CHARGER
Input voltage                                        AC 100-240V, 50-60Hz
Output Voltage                                    DC 12V, 500mAh
Standard Accessories                     Carrying Case 1pc, Battery 1pc, Battery                                                                                     Charger 1pc,Forehead support 1pc, Diopter                                                                             Adjustment Bar 1pc, Instruction Manual 1pc.
Optional Accessories                      X15 Eye Piece – 1Set
Spare Battery                                     7.4V 680mAh(1pc)
DIMENSION&WEIGHT
Dimension                                            195mm(W)X105mm(D)X230mm(H)
Weight                                                   About 700gms(Including a Battery)
